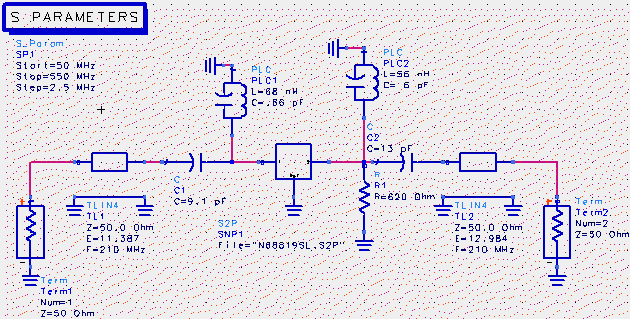

HP ADS schematic (click image to view LINC2 schematic).

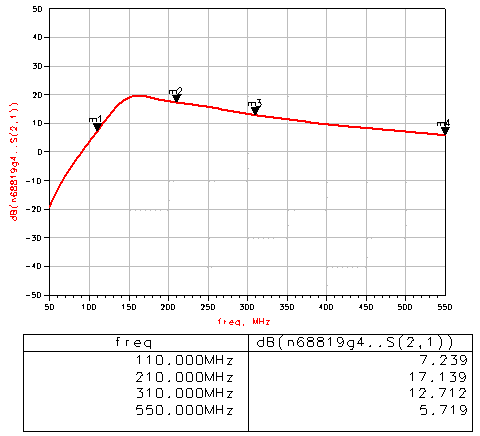

HP (Agilent) ADS simulation: Gain (S21) frequency response.

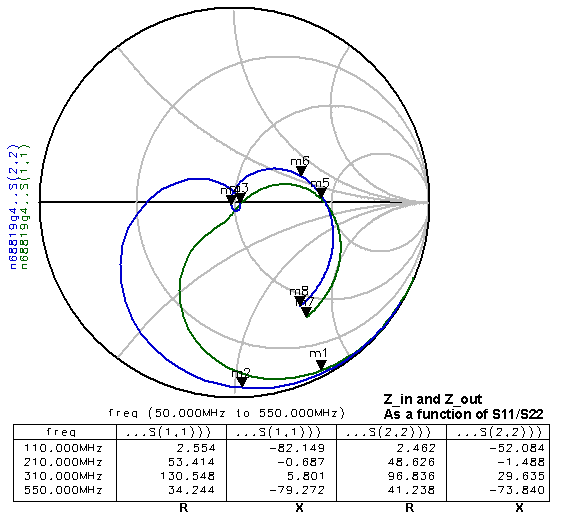

HP (Agilent) ADS simulation: Input and output match from sweep of S11/S22.

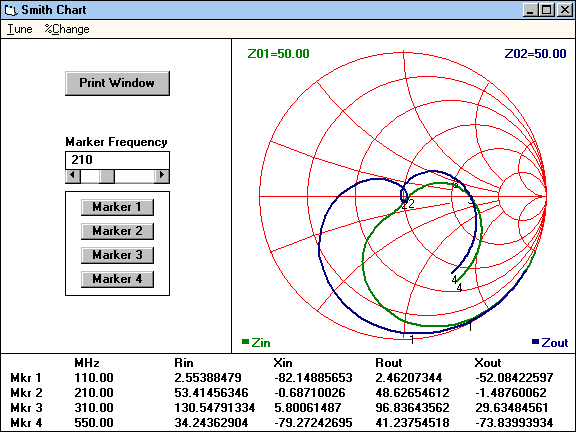

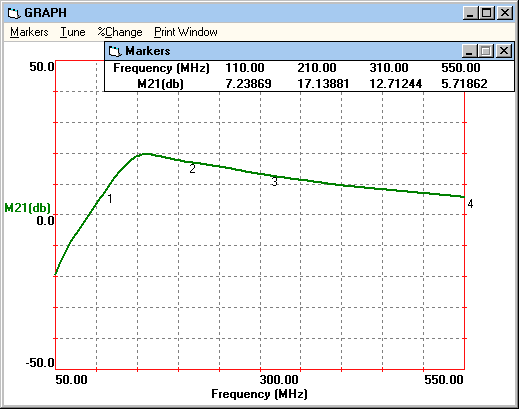

Compare HP ADS simulations above to LINC2 below:
The above LINC2 simulations are identical to those of the HP Advanced Design System (ADS).
HP ADS is a high end CAE program costing tens of thousands of dollars more than LINC2.
Click HERE to see how the simulations compare to the physical prototype as built.
